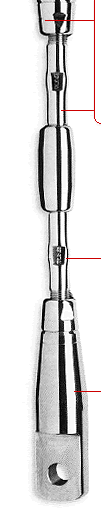

Double headed clevis pin for sleek appearance and positive connection.

Fork width and slot depth designed to suit standard structural plate sizes.

Tapered lock nuts positively lock adjustment.

All fittings and rods are polished and passivated to ensure maximum corrosion resistance. Alternate finishes such as satin are available upon request.

Spanner flats allow rotation of the rod for easy tensioning.

Architecturally styled fittings available in fork or eye combinations for ease of connection. All fittings designed to exceed rod breaking loads.

All fittings and rods are machined from highest quality, corrosion resistant grade 316 stainless steel.

RANGE OPTIONS

Refer to pages 24-25 for product specifications.

ROD SYSTEM 1 - FORK/FORK

ROD SYSTEM 2 - EYE/EYE

ROD SYSTEM 3 - FORK/JOINER/EYE

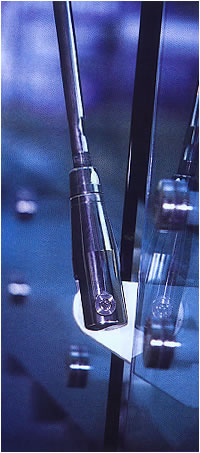

RONSTAN STAINLESS STEEL ROD SYSTEMS The lightweight structural solution With the trend toward structures of steel and glass, reflecting a new age of technology, Ronstan stainless steel rods stand alone to fulfil the most challenging of rigging demands. The Ronstan Rod system is a simple and effective architectural rigging system, used where innovative design requires a marriage of tension and moderate compression loads. Easily specified, easily installed and easily adjusted, they are a fast and effective tensioning solution; the integrity of stainless steel enhancing even the simplest of applications.

THE RONSTAN ROD SYSTEM Full range in U.N.F. threads for fine adjustment Fittings fully load rated and tested Ten rod sizes from 3/16” (4.8mm) to 1 1/4” (31.8mm) available covering loads up to 356kN (80,050lb) Joiners available to connect rods for long lengths (Refer page 24) Forks and eyes can also be used with threaded swage terminals in cable systems Rolled threads for increased strength SUITED TO APPLICATIONS Roof truss bracing Tension elements for glazed walls and roofs Structural supports Structural bracing Suspension rods
