NIRO帶調節器端子
NIRO帶調節器端子
一端是U型端子，另一端是普通端子
標準型 |

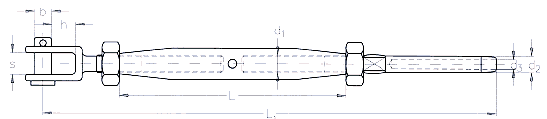

NIRO
Rigging Screw
with jaw and terminal
Standard type |
|
|
絲繩-Ø
rope-Ø
mm
|
螺紋
thread
d1
|
d2
mm
|
d3
mm
|
h
mm
|
s
mm
|
b
mm
|
L
mm
|
L1
mm
|
編號
stock no.
|
|
2,5
|
M 5
|
5,4
|
2,7
|
9
|
6
|
5,0
|
80
|
150
|
301 211 005
|
|
3
|
M 6
|
6,3
|
3,3
|
8,5
|
7
|
6,0
|
95
|
175
|
301 211 006
|
|
4
|
M 8
|
7,5
|
4,3
|
11
|
10
|
8,0
|
105
|
200
|
301 211 008
|
|
5
|
M 10
|
9,0
|
5,3
|
13
|
12
|
9,0
|
125
|
225
|
301 211 010
|
|
6
|
M 12
|
12,5
|
6,3
|
21
|
13
|
12,0
|
150
|
280
|
301 211 012
|
|
7
|
M 14
|
14,2
|
7,3
|
22
|
14
|
14,0
|
165
|
320
|
301 211 014
|
|
8
|
M 16
|
16,0
|
8,3
|
26
|
17
|
16,0
|
190
|
390
|
301 211 016
|
|
10
|
M 20
|
17,8
|
10,5
|
29
|
20
|
19,0
|
210
|
415
|
301 211 020
|
|
|
|
