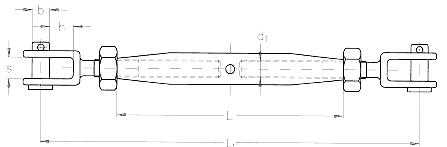

NIRO帶調節器端子
NIRO帶調節器端子
兩端都是U型端子
標準型 |
NIRO
Rigging Screw
with jaw and jaw
Standard type |
|
尺寸
nominal
size |
螺紋
thread
d1
|
h
mm
|
s
mm
|
b
mm
|
L
mm
|
L1
mm
|
編號
stock no.
|
|
M 5
|
M 5
|
9
|
6
|
5,0
|
80
|
120
|
301 212 005
|
|
M 6
|
M 6
|
8,5
|
7
|
6,0
|
95
|
145
|
301 212 006
|
|
M 8
|
M 8
|
11
|
10
|
8,0
|
105
|
165
|
301 212 008
|
|
M 10
|
M 10
|
13
|
12
|
9,0
|
125
|
195
|
301 212 010
|
|
M 12
|
M 12
|
21
|
13
|
12,0
|
150
|
245
|
301 212 012
|
|
M 14
|
M 14
|
22
|
14
|
14,0
|
165
|
270
|
301 212 014
|
|
M 16
|
M 16
|
26
|
17
|
16,0
|
190
|
325
|
301 212 016
|
|
M 20
|
M 20
|
29
|
20
|
19,0
|
210
|
380
|
301 212 020
|
|
|
|
